Small dipole printed circuit board antenna with parallel elements at each end - why?

Bumpff

Newbie
Joined
Sep 16, 2025
Messages
1
Reaction score
0

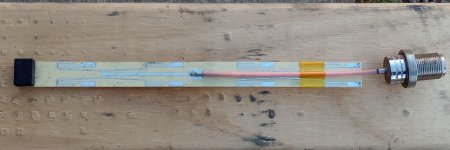

I have this commercially made small antenna (approx 1GHz) that I'm trying to understand. It's basically a 1/4 wave dipole but what's the purpose of the 4x parallel elements connected at each end? (there is a track under the pink cable).

I suspect they are designed to increase the effective bandwidth of the antenna, possibly by multi resonance/ harmonics. Can anyone explain?

Antenna photo 160925.jpg


prcguy

Member
Joined
Jun 30, 2006
Messages
17,628
Reaction score
12,954
Location
So Cal - Richardson, TX - Tewksbury, MA
Looks like an 8 element array probably for 5GHz. The thicker traces coming off the coax would be stripline transmission lines probably around 75 ohm then it divides to four very thin strip lines of a higher impedance to the antenna elements. So basically you have a multi element antenna with built in power divider to feed all the elements.


AB5ID

Member
Joined
Aug 6, 2007
Messages
1,047
Reaction score
959
Location
Lee's Summit, MO (Kansas City)
How long is the pc board?

Is the coax shield soldered on the Type N connector end, if not; is the shield soldered to the center conductor where it terminates onto the trace?

Do you know who made it, or where it came from?
