Default N9JIG Rack Details

I had a couple questions about the rack construction for my computerized shack. (BTW, new pics coming later this week due to a new shelf for the desk and a couple radios added/changed.) Since I put the rack up on a table for some cleanup and maintenance I figured it was a good time to get some interior detail shots.

I use the ScannerMaster USB-1 to DB-9 converted cables to avoid the problems with the front serial ports on the scanners. They cost more but work great. The DB-9 is a much more physically secure connector than that little oddball port on the scanner.

On 2 of the scanners I have discriminator jacks, they are remoted out with an audio cable that I ran thru the USB hub's strain relief.

The entire box is pretty much self contained. The wires and cables going to the box are long enough to allow me to rotate it out for rear access or to clean the floor behind it.

There is one power cord, one USB cable, 2 antennas and the discriminator audio (which I rarely use on these radios these days). The box is set on a set of casters that allow me to roll it in or out as needed. I usually tuck the cabinet under the desk out of the way since I never need to touch the radios. I use ProScan to control them and can adjust the volume and squelch from the computer.

I keep track of the stuff with a cheat sheet that looks like this:




Here is the front of the rack showing the 12 radios 7 BCT15, 4 BCT15X, 1 BCD996XT). 10 radios are in the racks and 2 on top.




Next is the overall rear shot showing the rats nest.




Here is a closer up view of the upper section. Notice the various color wire tags. One side has 2 tags and the other just one each. This allows me to tell which radio is connected to each cable. Each radio row has a color, each column has either 1 or 2 tags.

You can also see the little 4-port USB hub in which the 2 13-port ones connect into. This is a hold over from when I used the same case with a couple SDR sticks. I might delete this hub and just plug one of the 13's into the other but it has been working fine and allows me some flexibility for future expansion.

At the top of the case are 2 Stridsberg multicouplers. One is an 8-port, the other 4. This covers the 12 radios nicely.

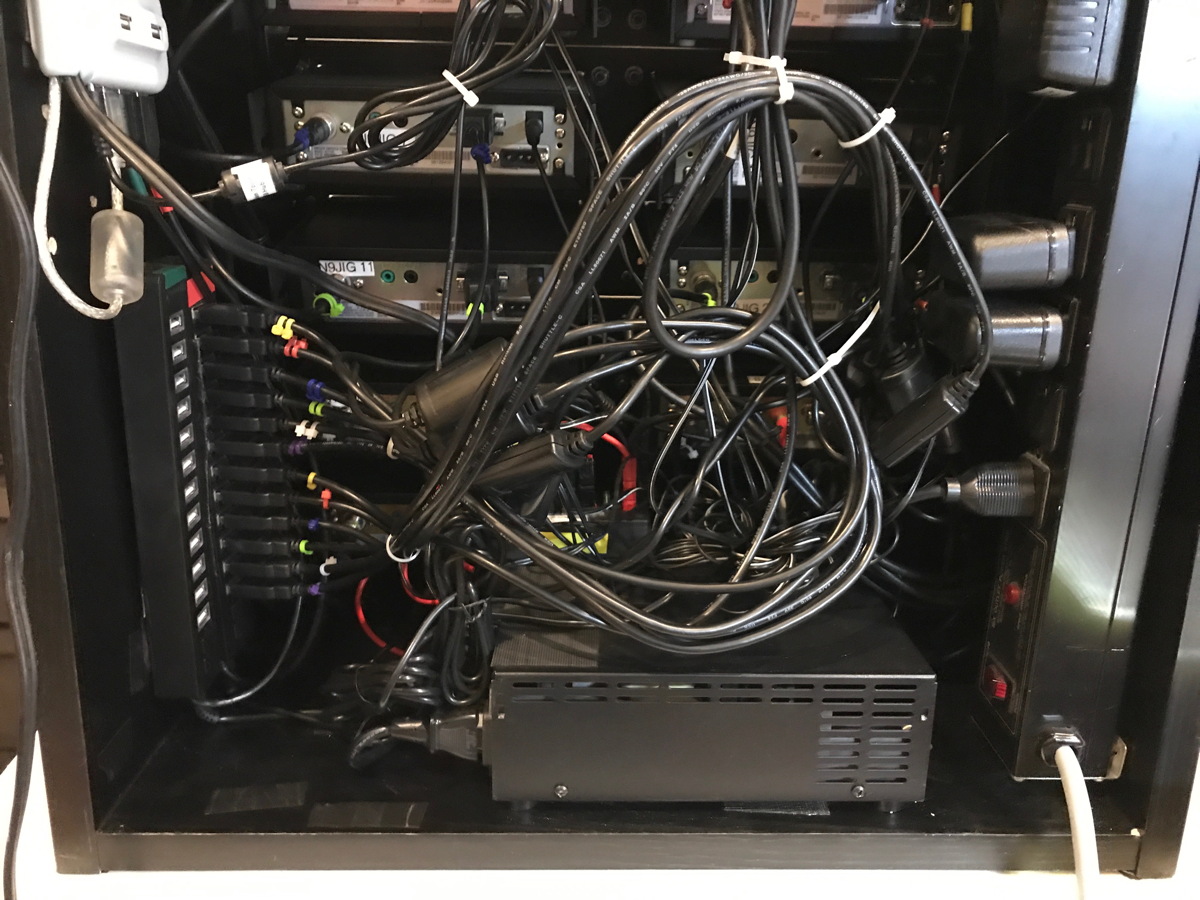

Here is a closer up view of the lower section with the power supply, outlet strip and USB hubs. The rear 13-port hub is for the USB-Serial cables and the front one will be used for the sound cards when I decide on a solution for that. I already have the sound cards and cabling done but I am still trying to find an ideal solution for handling the audio. Currently I am just using the radio speakers which is fine for listening in the office. I would like eventually to be able to record the audio and maybe even make it available remotely.

__________________
Rich Carlson, N9JIG

Facts are facts but my opinions are my own and may not reflect those of whom I work for.
Reply With Quote
Sponsored links
  #2 (permalink)
Old 07-17-2017, 7:50 PM
03msc's Avatar
Member
  Amateur Radio Operator
Amateur Radio

Join Date: Jun 2011
Location: Arkansas
Posts: 2,283
Default

Great job. Thanks for sharing! I always assume you get a nice discount at SM which, I'm sure, helps. I don't mean anything negative by that, just that it's probably helpful.
__________________
Mark Arkansas
Uniden Whistler Kenwood Yaesu
Reply With Quote
  #3 (permalink)
Old 07-17-2017, 8:22 PM
N9JIG's Avatar
Sheriff
  Shack Photos
Shack photos
RadioReference Database Admininstrator
Database Admin
Amateur Radio Operator
Amateur Radio

Join Date: Dec 2001
Location: Far NW Valley
Posts: 3,696
Default

Quote:
Originally Posted by 03msc View Post
Great job. Thanks for sharing! I always assume you get a nice discount at SM which, I'm sure, helps. I don't mean anything negative by that, just that it's probably helpful.
True, working there has its perks...
__________________
Rich Carlson, N9JIG

Facts are facts but my opinions are my own and may not reflect those of whom I work for.
Reply With Quote
  #4 (permalink)
Old 07-19-2017, 7:10 AM
Member

Join Date: Jan 2010
Location: Boston, MA
Posts: 34
Default

Nice set up! Makes me want to do something...
Reply With Quote
  #5 (permalink)
Old 08-07-2017, 9:08 AM
Member

Join Date: Mar 2003
Location: Northeastern Pennsylvania
Posts: 92
Default Green lights

What are the green lights on the BCT15X scanners?
Reply With Quote
Sponsored links
  #6 (permalink)
Old 08-07-2017, 9:43 AM
N9JIG's Avatar
Sheriff
  Shack Photos
Shack photos
RadioReference Database Admininstrator
Database Admin
Amateur Radio Operator
Amateur Radio

Join Date: Dec 2001
Location: Far NW Valley
Posts: 3,696
Default

Quote:
Originally Posted by ra7850 View Post
What are the green lights on the BCT15X scanners?
Activity indicators. They light up upon squelch break.
__________________
Rich Carlson, N9JIG

Facts are facts but my opinions are my own and may not reflect those of whom I work for.
Reply With Quote
  #7 (permalink)
Old 08-07-2017, 10:08 AM
N4CYA's Avatar
Member
  Shack Photos
Shack photos
Premium Subscriber
Premium Subscriber
Amateur Radio Operator
Amateur Radio

Join Date: Nov 2004
Location: GA!
Posts: 1,774
Default

Very impressive.
Reply With Quote
  #8 (permalink)
Old 08-08-2017, 8:11 AM
tglendye's Avatar
Member
  Shack Photos
Shack photos

Join Date: Jun 2002
Location: Virginia
Posts: 1,529
Default

Very Nice!
__________________
Todd
BCD436HP, PSR-500, PSR-410, Pro-197(x2), BC780xlt and lots of older stuff.
Reply With Quote
  #9 (permalink)
Old 08-14-2017, 6:49 PM
Was k2ool/k1nng

Join Date: Mar 2014
Posts: 1,324
Default

Holy scanners!
Reply With Quote
  #10 (permalink)
Old 09-06-2017, 3:36 PM
wa8pyr's Avatar
Technischer Guru
  RadioReference Database Admininstrator
Database Admin
Audio Feed Provider
Audio Feed Provider
Amateur Radio Operator
Amateur Radio

Join Date: Sep 2002
Location: Ohio
Posts: 3,930
Default

Quote:
Originally Posted by N9JIG View Post
I had a couple questions about the rack construction for my computerized shack. (BTW, new pics coming later this week due to a new shelf for the desk and a couple radios added/changed.) Since I put the rack up on a table for some cleanup and maintenance I figured it was a good time to get some interior detail shots.


I use the ScannerMaster USB-1 to DB-9 converted cables to avoid the problems with the front serial ports on the scanners. They cost more but work great. The DB-9 is a much more physically secure connector than that little oddball port on the scanner.
Nice! Giving me some useful ideas for the scanner shelf at my joint.

I rigged up a shelf made of shelf lumber just the right size to allow me to screw 19" rack panels to it, sitting on the corner of the desk, but it's not on casters or anything. I may have to close in the bottom and add casters to make it easier to move around if I need to adjust anything.

Since they're intended for GPS devices my guess is that the DB9 connectors on the rear require a null modem connector, correct?
__________________
Tom Swisher, WA8PYR
Lead Database Administrator
PSR500/Pro197/Pro2035+OS535/BCD436HP/TRX-1

If I PM you about a submission, please reply promptly or your submission may be rejected.
Reply With Quote
  #11 (permalink)
Old 09-07-2017, 7:14 AM
N9JIG's Avatar
Sheriff
  Shack Photos
Shack photos
RadioReference Database Admininstrator
Database Admin
Amateur Radio Operator
Amateur Radio

Join Date: Dec 2001
Location: Far NW Valley
Posts: 3,696
Default

Quote:
Originally Posted by wa8pyr View Post
Since they're intended for GPS devices my guess is that the DB9 connectors on the rear require a null modem connector, correct?
They would normally but the ScannerMaster-modified USB-1 cables are pre-wired to work directly on the 996/BCT15 series scanners without the need for an adapter.
__________________
Rich Carlson, N9JIG

Facts are facts but my opinions are my own and may not reflect those of whom I work for.

Last edited by N9JIG; 09-07-2017 at 7:20 AM..
Reply With Quote
  #12 (permalink)
Old 09-08-2017, 10:15 PM
Member
  Amateur Radio Operator
Amateur Radio

Join Date: Sep 2017
Location: Crystal Lake,Il
Posts: 10
Default

Back in the day if only we had the time and manpower...and a little cash, to have all NORCOM agencies look this good. Nice job Rich!
Reply With Quote
  #13 (permalink)
Old 09-09-2017, 5:56 PM
Member
  Amateur Radio Operator
Amateur Radio

Join Date: Jan 2011
Location: SE Wisconsin
Posts: 24
Default

I am trying to remember did you have a thread on how you built the scanner "boxes" like what materials you used and such?
Reply With Quote
  #14 (permalink)
Old 09-09-2017, 9:29 PM
03msc's Avatar
Member
  Amateur Radio Operator
Amateur Radio

Join Date: Jun 2011
Location: Arkansas
Posts: 2,283
Default

Quote:
Originally Posted by K9EMD View Post
I am trying to remember did you have a thread on how you built the scanner "boxes" like what materials you used and such?
He bought 'em:

https://forums.radioreference.com/pi...cks-shack.html
__________________
Mark Arkansas
Uniden Whistler Kenwood Yaesu
Reply With Quote
  #15 (permalink)
Old 09-09-2017, 9:36 PM
Member
  Amateur Radio Operator
Amateur Radio

Join Date: Jan 2011
Location: SE Wisconsin
Posts: 24
Default

Thanks 03msc, for some reason I thought be built them.
Reply With Quote
  #16 (permalink)
Old 09-09-2017, 9:48 PM
03msc's Avatar
Member
  Amateur Radio Operator
Amateur Radio

Join Date: Jun 2011
Location: Arkansas
Posts: 2,283
Default

Quote:
Originally Posted by K9EMD View Post
Thanks 03msc, for some reason I thought be built them.
No problem. Retailers do have the rack rails (with the threaded holes) available so you could, technically, build your own to whatever size you wanted and get the faceplates for the scanners, radios, etc. It's a little more work (obviously) but is possible.
__________________
Mark Arkansas
Uniden Whistler Kenwood Yaesu
Reply With Quote
