So recently got into listening to the air side of scanning, had one of those Maxx-Tennas in a box from recently moving to VB from James City County and put up in the garage. New house is located in the Ocean Lakes neighborhood, before I moved to James City, I grew up in Portsmouth , so the area isn’t new to me, just the air scanning part is very new and trying to get the hang of it. Have some questions, have gotten frequencies from RR, Airnav, and the Hampton Roads Scanner Page @kc4jgc

Have seen GiantKiller numerous times, have heard Fentress Touch and Go’s, heard APP/Dep from ORF, NAS Oceana, have heard the Sector frequencies that aircraft use when entering airspace over Norfolk. Have managed to hear ORF, NOB Chambers Field, and Oceana and my favorite is catching the VBPD Helo talking with Oceana Tower to transit their airspace.

What exactly is GiantKiller? right now I’m hearing it on 251.3 and just sounds like a one sided conversation about entering airspace, mostly she’s referring to Cherry Point and Wilmington areas of NC

-What are some other good channels to add? Currently using a SDS-100 with Austin Condor antenna and the exterior antenna is hooked up to a PRO-197.

-When the planes are using the Sector channels for different altitude’s, why do I only hear the planes and not the tower?

133.825 is listed as Washington Center on the Hampton Roads Scanner Page, it’s also a Sector frequency for Norfolk, from what understand they’re categorized by altitude, Low, High, Super High. I’ve been using FlightAware and finding the aircraft

I also have a bunch of channels listed as “ Discrete”, are these the equivalent of “ Talkaround” or chit-chat channels for the Navy pilots?

Also have seen numerous channels listed as Ground Control Approach, what’s the difference between that and an Approach channel at ORF or any other civilian airport?

Have seen Unicom on some of the smaller regional, executive and municipal airports, what exactly is Unicom?

Also any other pertinent information relating to the area I should be aware of or any other channels or tips is greatly appreciated.


Eugene

Member
Joined
Dec 19, 2002
Messages
615
Reaction score
55
Location
Portsmouth, VA
Hey. Giantkiller is the term for Fleet Surveillance radar. It is used for radar control through NAS Oceana airspace and also for any practice air combat in the warning areas off the coast. I have a list of frequencies at home I can send later (I am at work now). As far as Washington center sectors, the controller is remoted through what's called an RCAG. The one for Norfolk is located in Whaleyville in Suffolk. The Yorktown super high is remoted somewhere in Yorktown. There is also one remoted at Cape Charles for Eastern Shore stuff. I can sometimes hear the Whaleyville one (designated as Norfolk) from Portsmouth on a good day.

Any ATC facility such as Norfolk, which is class C airspace has a tower which usually controls All landing traffic within 5 miles and all departing traffic. Before handed off to tower or after takeoff, they are handed off to an "approach" or "departure" controller which give radar vectors and advisories and maintain positive control. For Norfolk this extends out to about 14,000 feet (or just about over my house which is about 6-7 miles from Norfolk for airliners or for civil aircraft until service is terminated by request or they get out of their area of control.

Unicom is used for smaller airports with out ATC (or after midnight for Newport News Williamsburg airport). It is a common frequency which all aircraft arriving, departing, or remaining in the pattern use to announce position and intention. A good site to go to is AirNav. For airport, type KORF for Norfolk and click sectional and it will give break down of frequencies and radar areas and Warning areas.

Hope this helps.

Eugene KG4AVE


Eugene

Member
Joined
Dec 19, 2002
Messages
615
Reaction score
55
Location
Portsmouth, VA
Also GCA or ground control approach is mainly used at military airports. The controller actually guides the aircraft to touchdown by calling out whether they are above/below glidepath or left/right of glidepath.

Eugene KG4AVE


LeSueurC

IBEW Local 50
Premium Subscriber
Joined
Nov 6, 2014
Messages
1,330
Reaction score
307
Location
Virginia Beach, VA
Also GCA or ground control approach is mainly used at military airports. The controller actually guides the aircraft to touchdown by calling out whether they are above/below glidepath or left/right of glidepath.

Eugene KG4AVE
Thanks, appreciate the info. Yes whenever you get a chance send them over. Also what is the difference between the VHF and UHF channels? I’ve heard the same conversation on both channels it seems?


reconrider8

Member
Joined
Dec 26, 2007
Messages
2,892
Reaction score
381
Location
Eastern, NC
I'll throw this in here. The higher the antenna and the better the antenna the more you will here. I run a dpd miltenna up around 30' and I can hear all kinds of stuff all over eastern nc and va


LeSueurC

IBEW Local 50
Premium Subscriber
Joined
Nov 6, 2014
Messages
1,330
Reaction score
307
Location
Virginia Beach, VA
I'll throw this in here. The higher the antenna and the better the antenna the more you will here. I run a dpd miltenna up around 30' and I can hear all kinds of stuff all over eastern nc and va
I'd love to go taller, but HOA already *****ed about my work truck, only other thing would be up in the attic.


dickie757

Wired
Joined
Apr 25, 2017
Messages
559
Reaction score
245
Location
Out of range
The Coast Guard likes to fly around here. Usually, they are coming from Elizabeth City. I dont know any details of where to scan, but it might be a target for you.


tvengr

Well Known Member
Joined
Feb 10, 2019
Messages
11,432
Reaction score
4,845
Location
Baltimore County, MD
Here are the ATC frequencies for Norfolk International. For any airport with a full-time control tower, Unicom is 122.95. You will need to lockout the ATIS frequency. It is a continuous transmission with airport info. A good source for airport frequencies is AirNav.

Norfolk Intl
120.800KORF Tower VHF
257.800KORF Tower UHF
121.900KORF Ground
118.500KORF Clear Deliv
122.950KORF Unicom
127.150KORF ATIS
118.900KORF App VHF
335.625KORF App UHF
353.700KORF App UHF
125.200KORF Dep VHF
363.125KORF Dep UHF
379.100KORF Dep UHF
125.700KORF Class C
121.500Aero Emerg VHF
243.000Aero Emerg UHF

Last edited:

RichardKramer

Member
Premium Subscriber
Joined
Oct 13, 2006
Messages
1,867
Reaction score
3,972
Location
Reading, PA

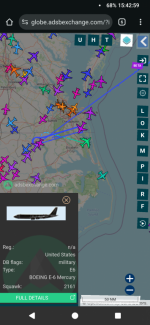

This one is flying around right now.
No clue what its mission is, but I have never seen this before

Edit....this is the link
It's part of a military exercise called GLOBAL THUNDER 26. The E6 aircraft transmit EAMs, Emergency Action Messages on AM UHF 311.0MHz and on HFGCS 4724KHz 8992KHz 11175KHz 15016KHz upper sideband (USB).


RichardKramer

Member
Premium Subscriber
Joined
Oct 13, 2006
Messages
1,867
Reaction score
3,972
Location
Reading, PA
Are the EAM messages encrypted by chance?
Yes; they're usually a string of letters and numbers some of which are test messages, some are actual action messages.
A higher priority message will start with
"SKYKING SKYKING DO NOT ANSWER, MESSAGE TO FOLLOW ".


dlwtrunked

Member
Premium Subscriber
Joined
Dec 19, 2002
Messages
2,660
Reaction score
1,510
It's part of a military exercise called GLOBAL THUNDER 26. The E6 aircraft transmit EAMs, Emergency Action Messages on AM UHF 311.0MHz and on HFGCS 4724KHz 8992KHz 11175KHz 15016KHz upper sideband (USB).
And on 323.8 simultaneous with the 311 MHz. The E6 most note worthy mode is the digital (FSKand MSK RTTY) transmission on VLF (usually between 17 and 30 kHz) which are the same message (phonetics) message as on UHF and HF. And. yes, many of us do copy those. Those are transmitted using a very long trailing wire antenna with the E6 fly over a remote area--generally off shore.


LeSueurC

IBEW Local 50
Premium Subscriber
Joined
Nov 6, 2014
Messages
1,330
Reaction score
307
Location
Virginia Beach, VA
This one is flying around right now.
No clue what its mission is, but I have never seen this before

Edit....this is the link
I catch a RCH279 coming into Oceana from Andrew AFB Sunday night, my house was right on there flight path
