HD Radio plugin for SDR Sharp?

[N9JIG]

Is there a plug-in for SDR Sharp to allow one to monitor HD Radio on the FM band? I have a couple HD sub-channels that I listen to in the car often and want to be able to monitor them at home on my SDR.



[PDXh0b0]

There is a main program & some gui interfaces dependent on the main program(I find just the main program "command line" runs smoothest( no album art, etc)

Main program

GitHub - theori-io/nrsc5: NRSC-5 receiver for rtl-sdr

NRSC-5 receiver for rtl-sdr. Contribute to theori-io/nrsc5 development by creating an account on GitHub.

github.com

Original gui interface

GitHub - cmnybo/nrsc5-gui: A graphical interface for nrsc5

A graphical interface for nrsc5. Contribute to cmnybo/nrsc5-gui development by creating an account on GitHub.

github.com

Forked gui interface

GitHub - markjfine/nrsc5-dui: An enhanced, user-friendly version of nrsc5-gui that is not heavily dependent upon Python processing for audio generation.

An enhanced, user-friendly version of nrsc5-gui that is not heavily dependent upon Python processing for audio generation. - markjfine/nrsc5-dui

github.com

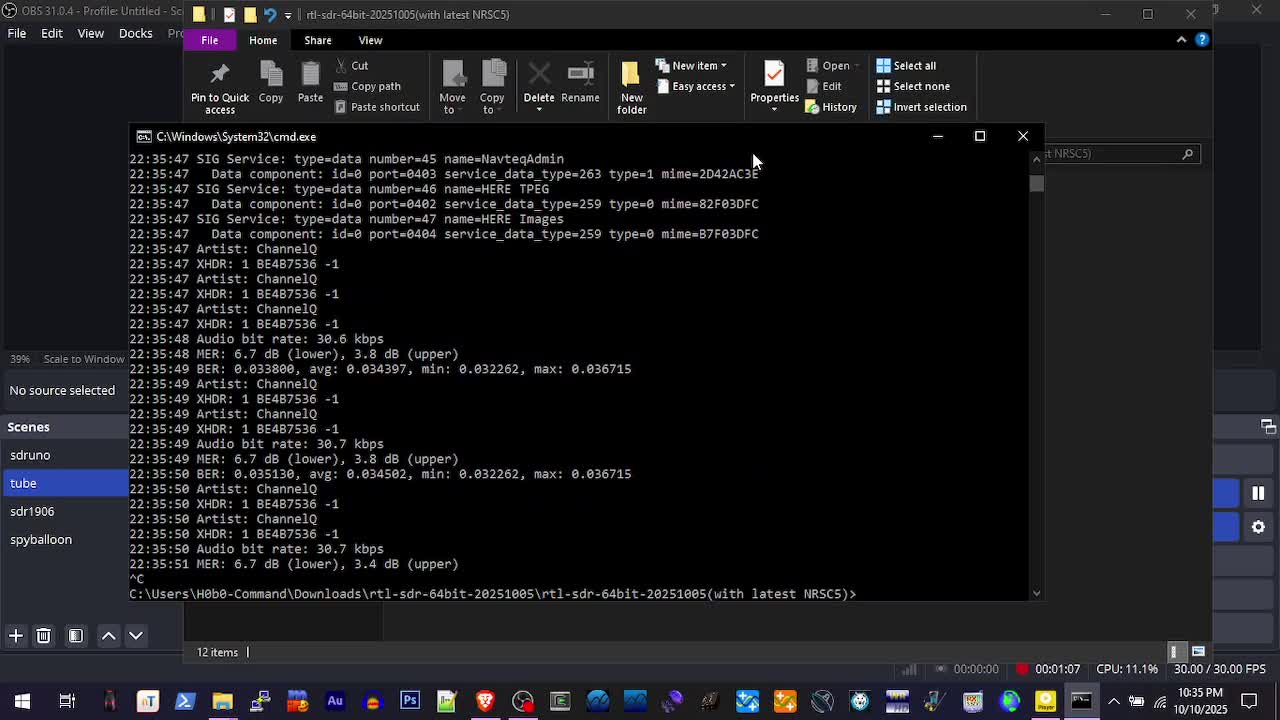

After seeing your post I compiled the latest release 3.0.1 and added it too osmocom latest rtl-sdr binaries

rtl-sdr-64bit-20251005(with latest NRSC5).zip

drive.google.com

Watch unnamed | Streamable

Watch "unnamed" on Streamable.

streamable.com



[PDXh0b0]

Forgot this gem

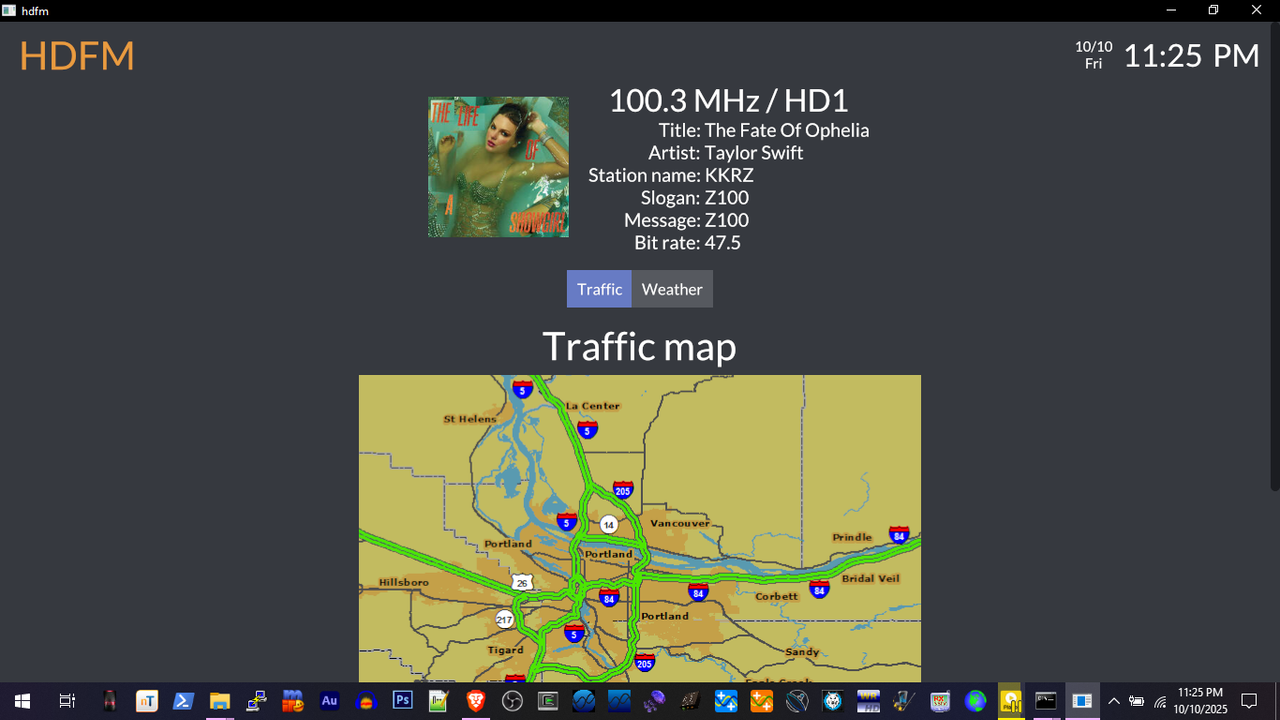

HDFM

Release 2.0.1 · KYDronePilot/hdfm

hdfm has been rewritten in Rust! Enjoy: Blazing fast performance Single binary requiring no dependencies (except nrsc5) Improved modern UI layout New in 2.0.1 Added logging support Added Linux b...

github.com

Download the
hdfm-x86_64-pc-windows-msvc.zip

Extract it, copy the hdfm.exe into the rtl-sdr binaries folder with the nrsc5.exe in it.

Open cmd in that folder, run
hdfm.exe frequency program

Example

hdfm.exe 99.5 0



[Spleen]

I haven't used these in a while, just reinstalled them. Amazing how many stations have dropped their HD feed...
