Kenwood NX 5700K / KCH-20R

FiremanJim23

Member
Joined
Dec 16, 2016
Messages
6
Reaction score
3
Location
Little Hocking
I have the above Kenwood radio in my fire response vehicle. The KCH-20R head does not light up. I have VHF, UHF and MARKS decks. Nothing has changed since it was last working. I can hear transmissions from other departments but I have no idea where I am on my display - channel selection. I have checked all fuses, I believe, and all seem to be good and the connections are clean and bright. The display just stopped one day and I have been driving myself nuts trying to find out what it is. Any assistance would be really appreciated. I use this radio to let the fire department and dispatch know I am responding and sometimes communicate the situation on scene if I arrive first on scene. Thanks again and may God bless.


n7maq-1

Member
Premium Subscriber
Joined
Mar 12, 2004
Messages
288
Reaction score
216
Location
Oregon
Try reseating the CH cable. I have not seen a display just go out on a KCH-20 as you describe, but that does sound like what it is. If it is under a year old then it will be covered under warranty, if not it is a flat rate repair now at United Radio. I DO NOT recommend FTH Group.



FiremanJim23

Member
Joined
Dec 16, 2016
Messages
6
Reaction score
3
Location
Little Hocking
Try reseating the CH cable. I have not seen a display just go out on a KCH-20 as you describe, but that does sound like what it is. If it is under a year old then it will be covered under warranty, if not it is a flat rate repair now at United Radio. I DO NOT recommend FTH Group.

Ok, dumb old man here - what is the CH cable and where is it located?


tweiss3

Is it time for Coffee?
Premium Subscriber
Joined
Apr 24, 2020
Messages
1,466
Reaction score
871
Location
Ohio
CH is short for control head, the KCH-20. The cable goes into the back of the control head.


AYoung2600

Member
Joined
Jul 24, 2009
Messages
95
Reaction score
11
Location
Ohio

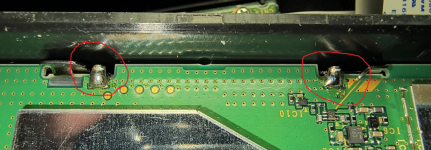

I’ve only had 1 KCH-20 head out of the hundreds I’ve installed do the exact same thing. I ended up pulling the back plate off of the head and reseating the ribbon cable inside and it has been working ever since.
