Because of this thread I decided to gather some information.
Here's what I have so far:
There is a tamper switch.
the opposite side local circuitry below
Note: the display was removed. the slit at the bottom of the image is one of four places the metal shield tabs were bent to hold and there is a ground at each of the four slits.
cast aluminum frame
to be continued.
Sorry, I lost connection there. Here's more.
Something to note: When I unbent the tabs from the metal screen frame and pulled the unit away, there were some markings on the screen that seemed to have a view characters I can't recall what letters. but there were a couple vertical lines as well. based on the design I assume that is from removing the screen element I somehow either static discharged or there was some residual charge or an induced charge when I pulled the metal shield away from the display.

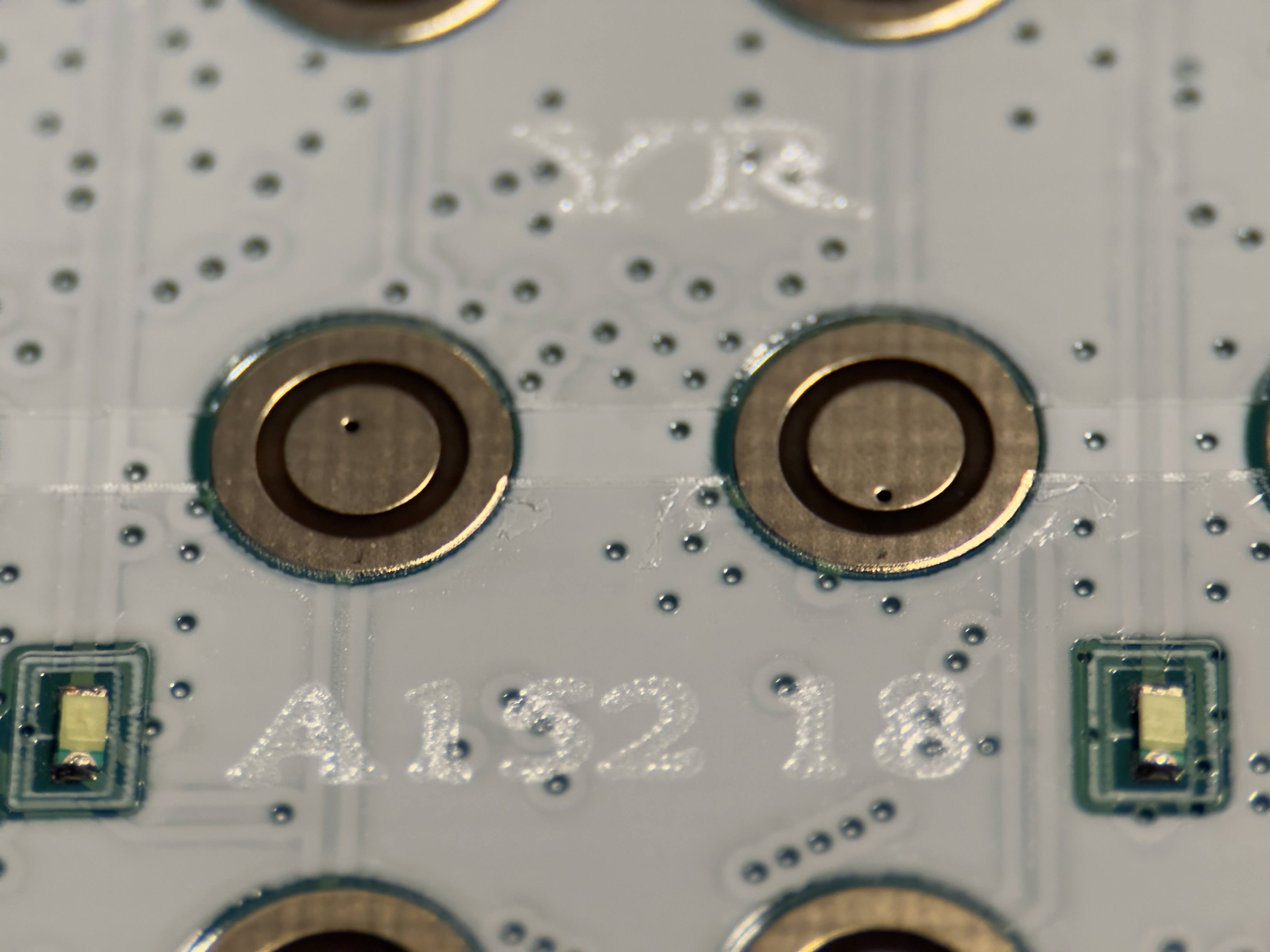

this was below the backlight diffusion panel
